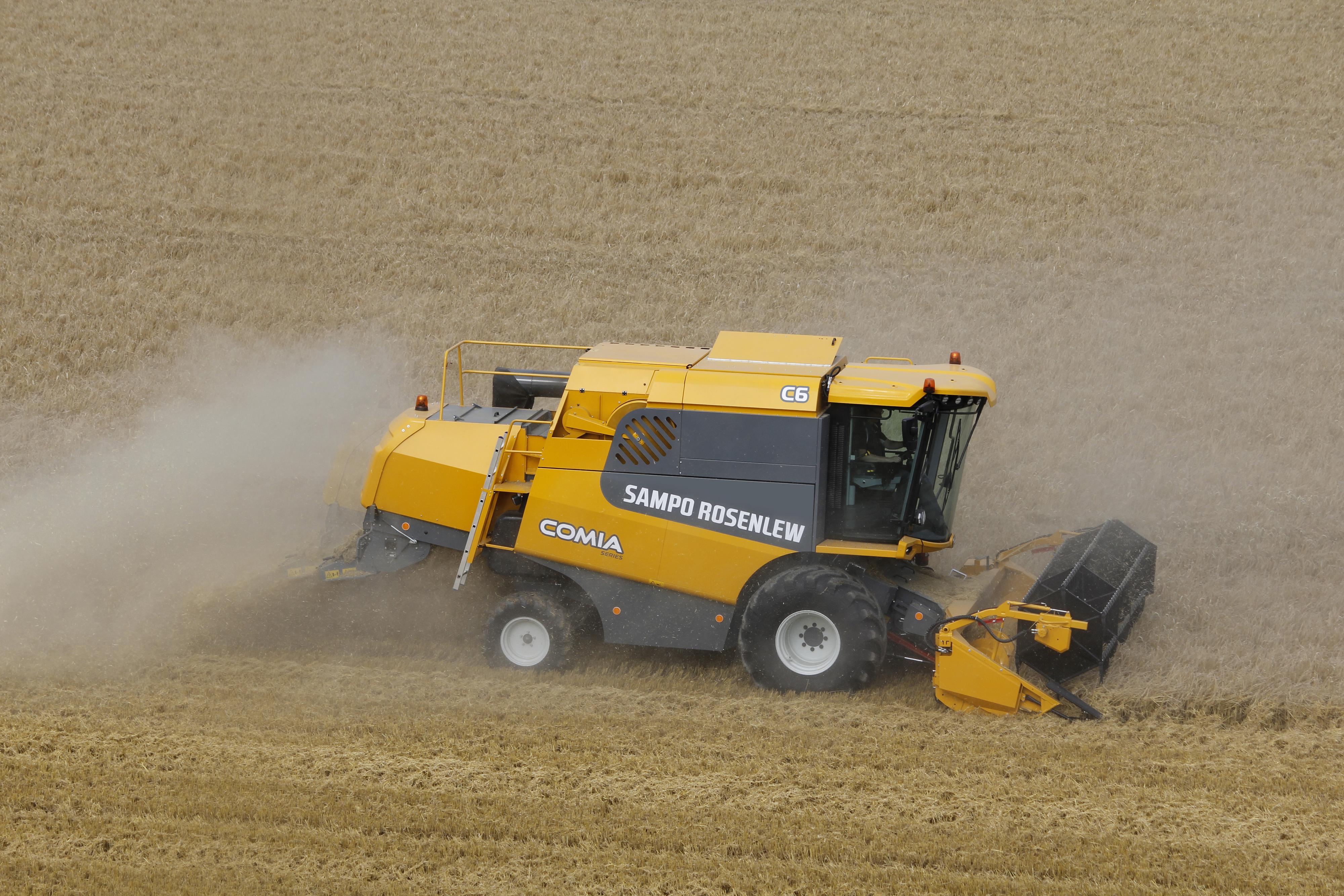

Comia C6

The Comia C6 is equipped with the same nice features in the cab as the other models in the series.

Watch video
Cab

The C6 has been equipped with a HD threshing cylinder, which rotates steadily in every situation. The threshing cylinder has eight rasp bars and the cylinder flanges are made of cast iron. Any possible peak loads easily go unnoticed in this efficient one-cylinder machine. The engine is a powerful, four-cylinder, 185 HP, Tier 5 engine. The grain tank has a capacity of 4,400 litres and the unloading height is 4 metres. Standard header size is 4.2 metres, but the combine can be equipped with cutting widths between 3.9 and 4.5 metres.

Cutting header 4,2 m
Grain tank 4 400 l
Engine 4-cylinder 185 hp AGCO POWER Tier5
Air conditioning Standard
Threshing cylinder 8-rasp bar HD
Unloading speed 75 l/s
Straw walkers 5 walkers
Straw chopper 3 300 rpm
Front tires 600/65R34
Rear tires 420/65R20

Cab

AVARA - style and functionality

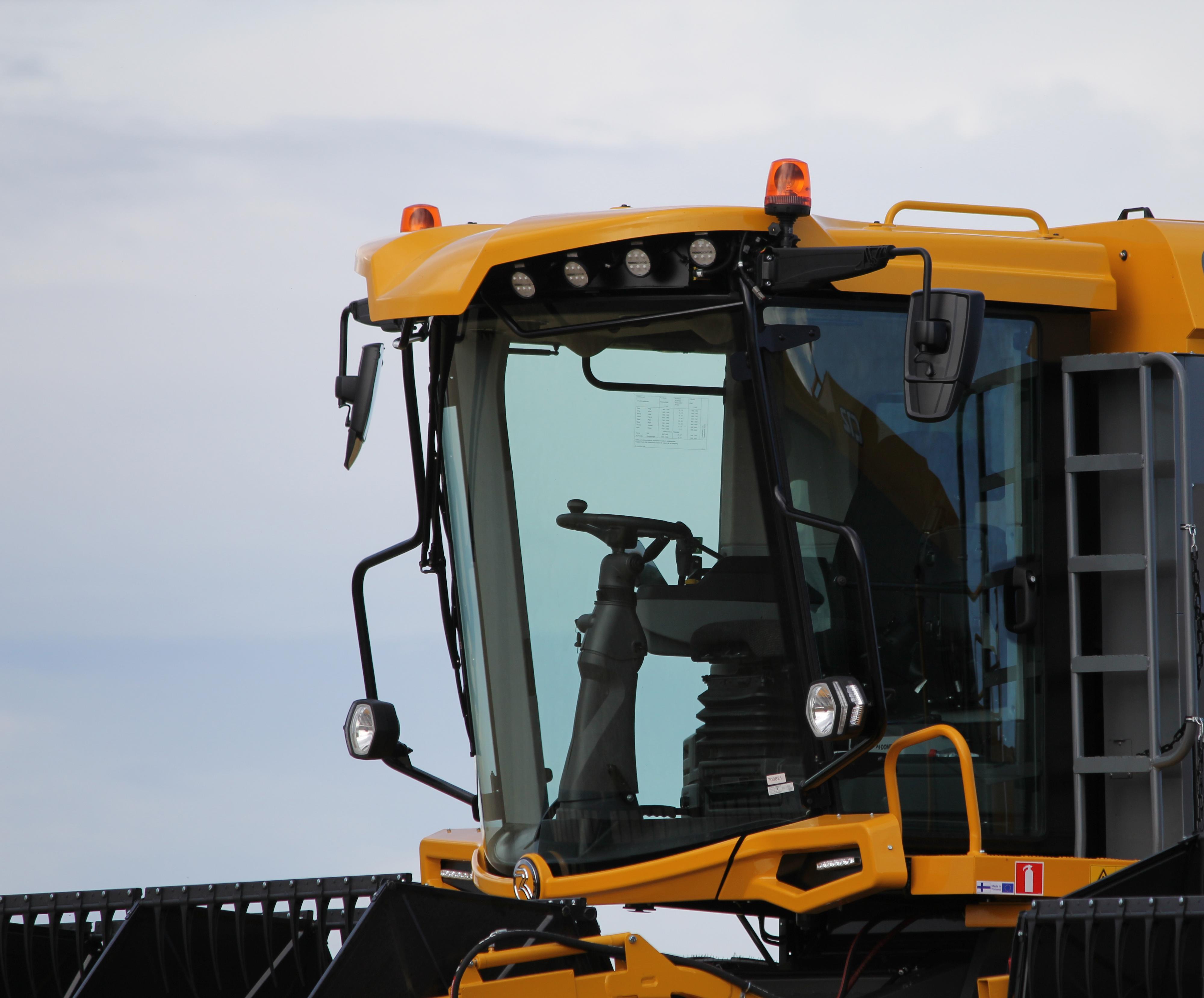

Eight work lights, modern LED day driving lights, and a wide windscreen. One of the factors considered during the design of the cab, was the driver’s clear visibility of the cutting header.  The combine harvesters of the COMIA series have a multi-function drive lever, and the layout of the other controls has also been carefully designed. All threshing-related activities, such as the controls of the machinery and cutting header, are located in the armrest. The console also has 12V and USB connectors. You can easily control the modern COMVISION II touchscreen with one hand while harvesting. It is very easy to monitor threshing, when at the same time you can see e.g., the grain loss monitor, height of cutting table, forward speed, and warning lights. Any alarms can be seen on the COMVISION II screen as pop-up warnings on the screen and the system also gives out an audible signal.

Cutting header

Excellent headers

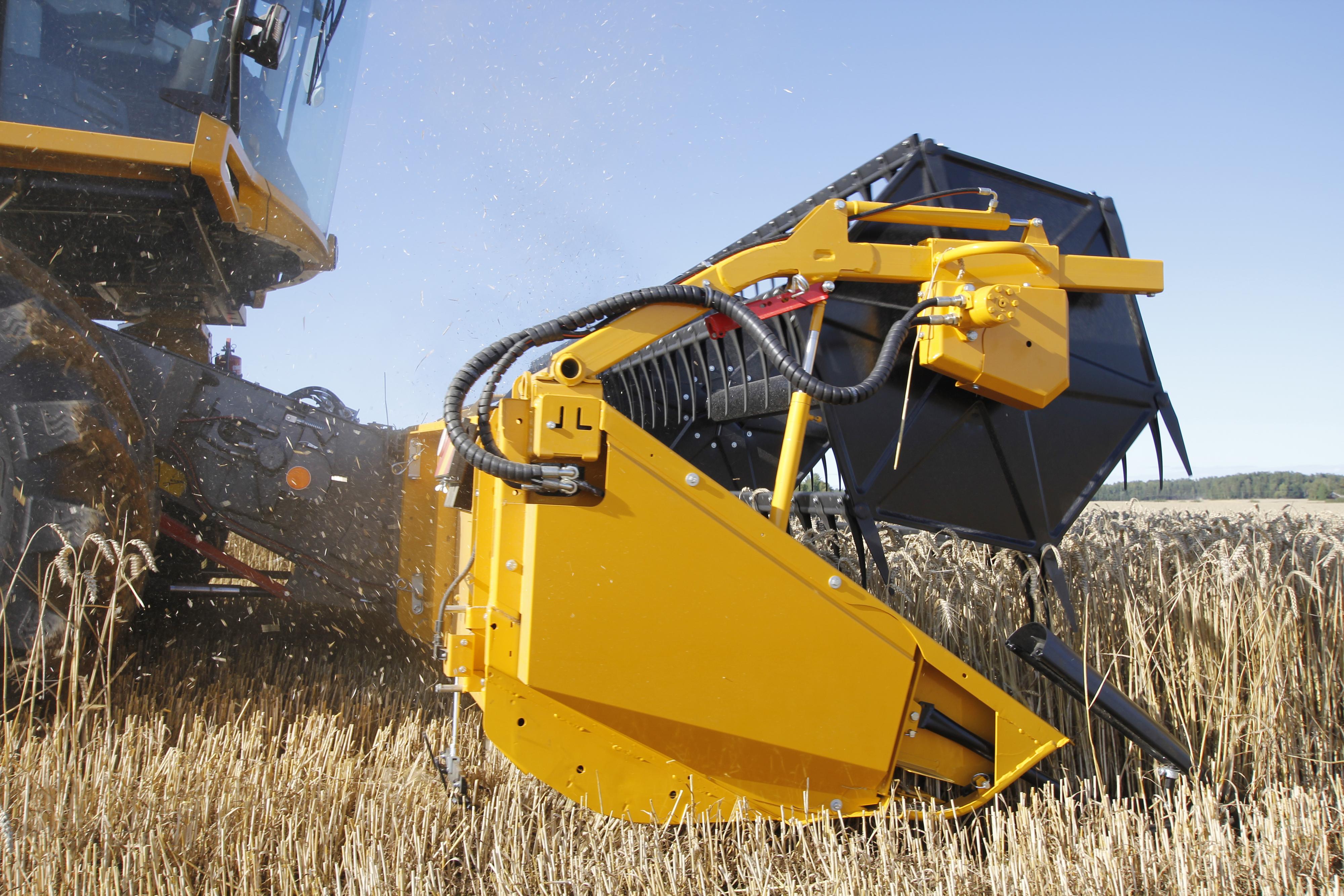

Easy to connect, recognised for its geometrics, and fully hydraulic operations. The nylon/plastic tines of the pick-up reel, which have been found to be effective, and the hydraulic header reverse put the finishing touches on this highly functional cutting table.
Whether growth is high or low, Comia’s cutting header, which has been developed over several years, can handle it. The optimal distance from the knife to the feeder auger ensures an uninterrupted feed to the combine's feeder elevator. Side tilt is available as an optional extra.

Threshing mechansim

Efficient threshing mechanism and versatile settings

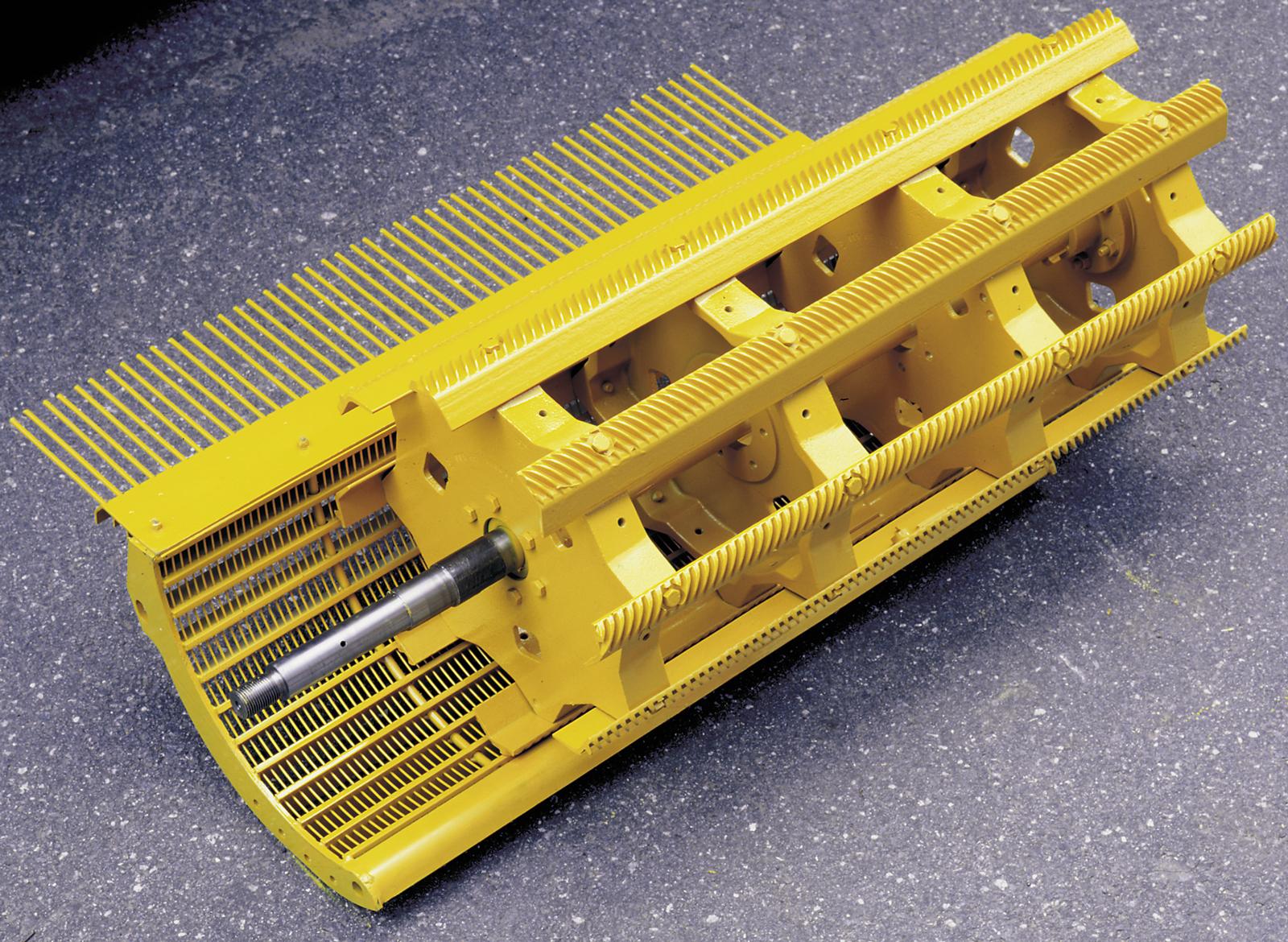

The 112 cm wide threshing mechanism with its eight-rasp-bar HD threshing cylinder ensures good threshing in this harvester equipped with a single threshing cylinder.
The five straw walkers and a large straw walker area ensure good separation. The RV2 lamella upper sieve efficiently removes chaff and the RV3 lower lamella sieve makes clean grain into the tank. Returns are threshed with the screw located on the left side of the combine. The returns are blown back to the end of the grain pan. This way, the returns do not load the threshing cylinder and instead travel their own route.

Transmission

Power and durability

Every combine harvester of the COMIA-series has a strong three-gear gearbox. The gearbox has a hydraulic clutch assist, which makes shifting easy and handy. In order to activate the clutch assist, you simply press a button on the gear stick. The gearbox is powered by a strong hydraulic motor, which can be controlled continuously from the cab using the drive handle.
A strong front axle equipped with final drives and disc brakes, allowing for the use of wide tyres. Optionally, the COMIA can be equipped with extra wide tyres. You can check from the specifications, which tyres fit with your COMIA. Hydraulic four-wheel drive, which helps driving in tough conditions, are available as an optional extra.

Cleaning

The undisputed leader on the market with regards to cleanability

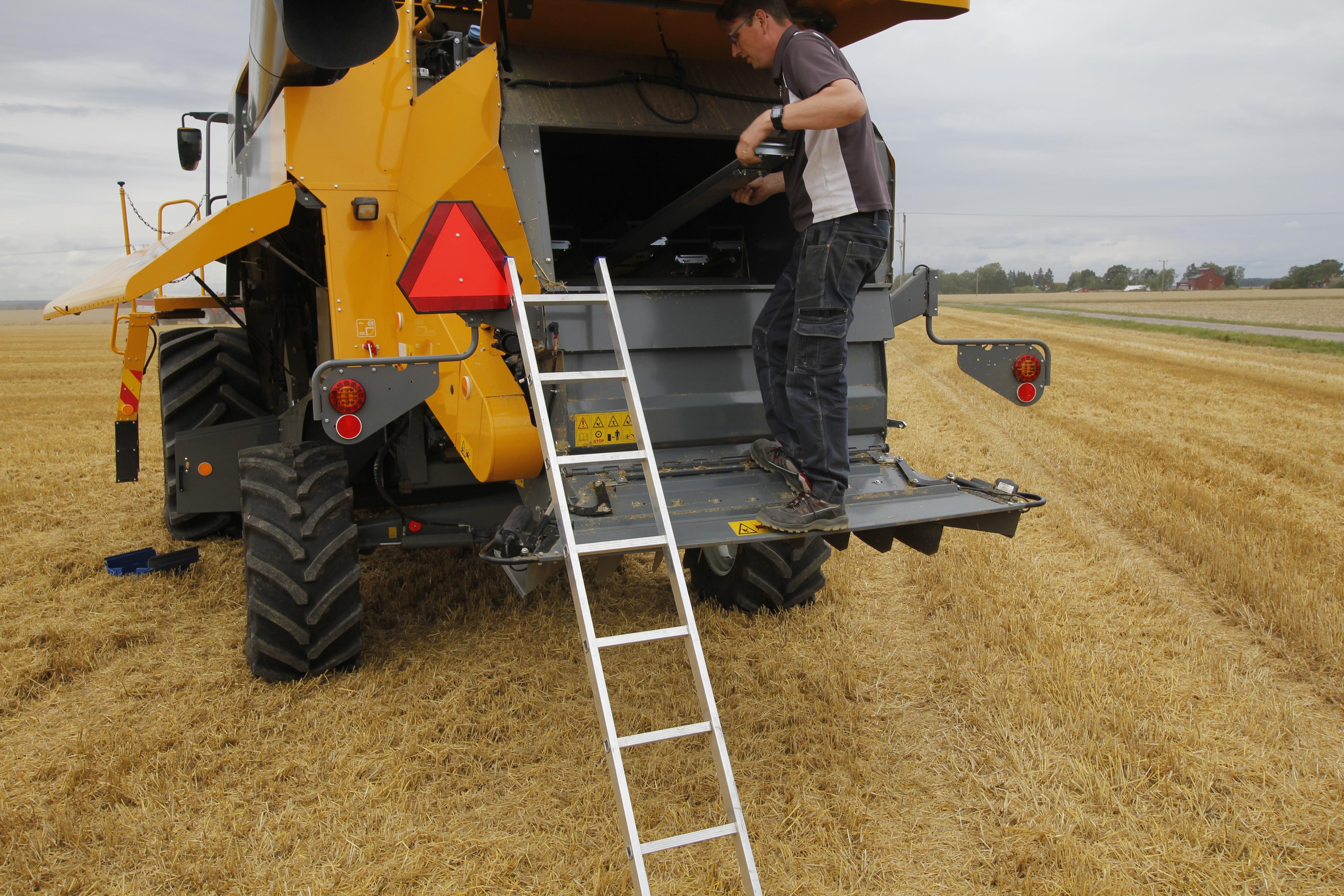

Thanks to their technical solutions, the SAMPO ROSENLEW combine harvesters have always been easy to clean. For example, the grain pan sections can be extracted and the straw walker bottoms can be removed. Although the same features may be included in other makes, SAMPO has implemented them so that you do not have to carry out cleaning in your service area. Instead, you can clean them on the field and have more uptime.

Grain tank

The bigger the tank, the greater the efficiency

This is why the C6 has been equipped with a large 4,400 litre grain tank. The unloading speed and volume of the COMIA 2.0 series has been increased from the previous generation of harvesters. Now the unloading speed is 75 l/s, meaning an increase of 50% from the previous model.

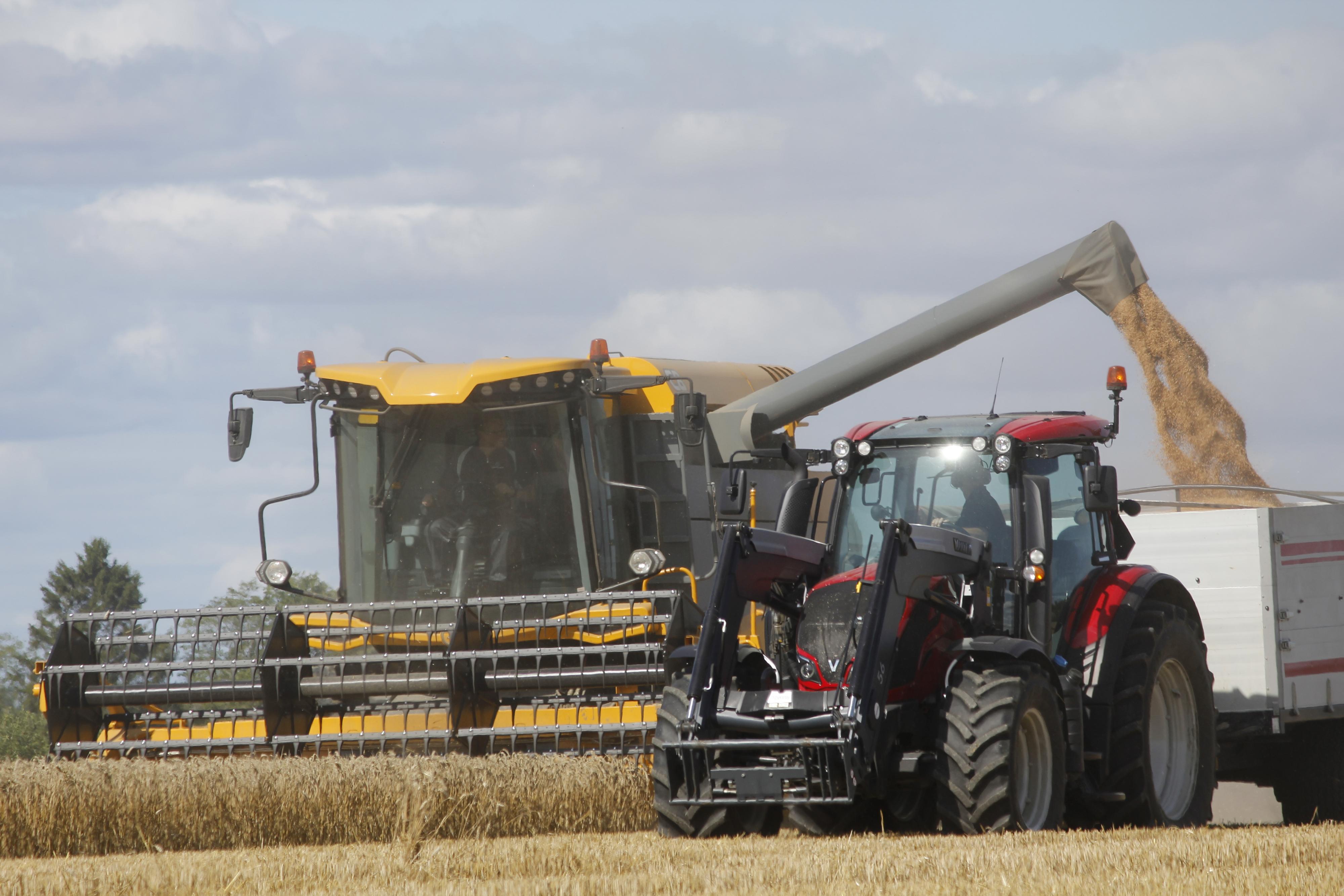

Thanks to the 4-metre unloading height, unloading can easily be done into a trailer with high sides. The long unloading pipe can easily be swung by pressing a button on the drive handle. Unloading is also started from the drive handle.
A large grain tank window allows easy monitoring of the filling of the tank. The tank is illuminated with a powerful LED light. This way you can monitor the grain quality also at night. The filling alarm of the tank is connected to the COMVISION II screen, and it lets you know when the time comes to empty it.
